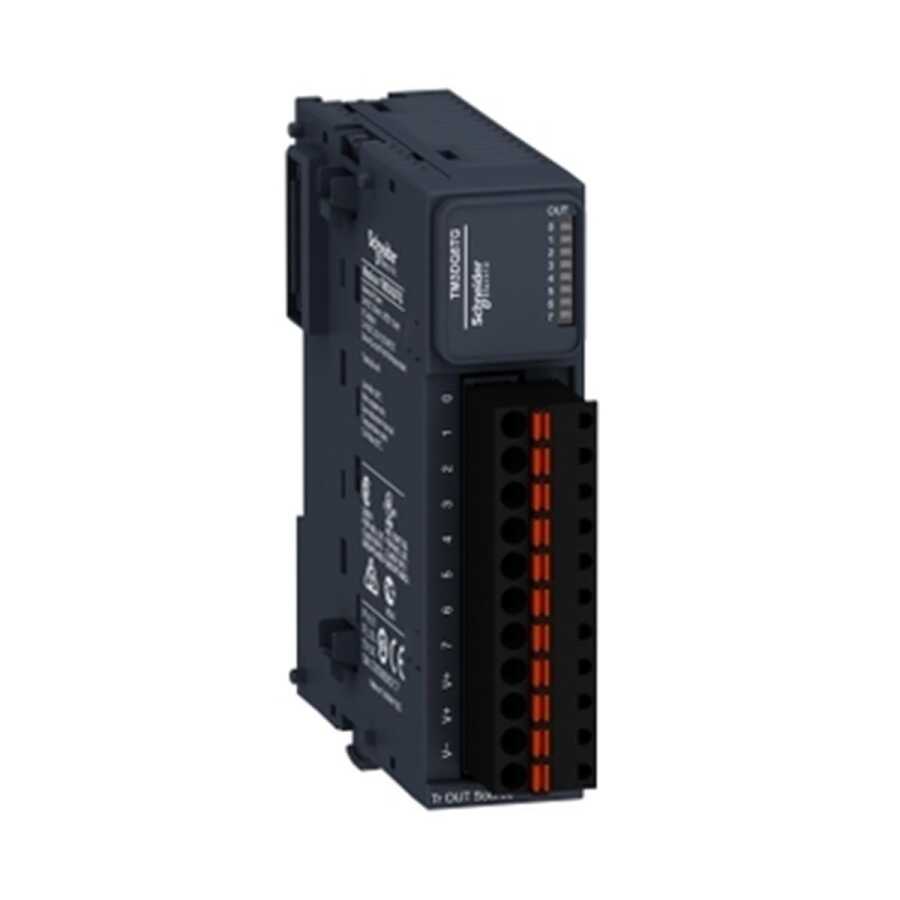

| range of product | Modicon TM3 |
|---|---|
| product or component type | Discrete output module |
| range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| discrete output type | Transistor |
| discrete output number | 8 |
| discrete output logic | Positive logic (source) |
| discrete output voltage | 24 V DC for transistor output |
| discrete output current | 500 mA for transistor output |
| discrete I/O number | 8 |
|---|---|
| current consumption | 5 mA at 5 V DC via bus connector (at state off) 0 mA at 24 V DC via bus connector (at state off) 20 mA at 24 V DC via bus connector (at state on) 10 mA at 5 V DC via bus connector (at state on) |
| response time | 450 µs (turn-on) 450 µs (turn-off) |
| maximum leakage current | 0.1 mA for transistor output |
| maximum voltage drop | <0.4 V |
| maximum tungsten load | <3 W for transistor output |
| local signalling | 1 LED per channel (green) for output status |
| electrical connection | 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs |
| maximum cable distance between devices | Unshielded cable: <30 m for transistor output |
| insulation | Between output and internal logic at 500 V AC Non-insulated between outputs |
| marking | CE |
| mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| height | 90 mm |
| depth | 84.6 mm |
| width | 27.4 mm |
| net weight | 0.76 kg |
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 |
|---|---|
| product certifications | C-Tick cULus |
| resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 |
| resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| resistance to fast transients | 1 kV for I/O conforming to EN/IEC 61000-4-4 |
| surge withstand | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 |
| ambient air temperature for operation | -10…35 °C vertical installation -10…55 °C horizontal installation |
| ambient air temperature for storage | -25…70 °C |
| relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| pollution degree | 2 |
| operating altitude | 0...2000 m |
| storage altitude | 0…3000 m |
| vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel |
| shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 230.0 g |
| Package 1 Height | 7.5 cm |
| Package 1 width | 12.5 cm |
| Package 1 Length | 10.5 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Weight | 2.234 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
