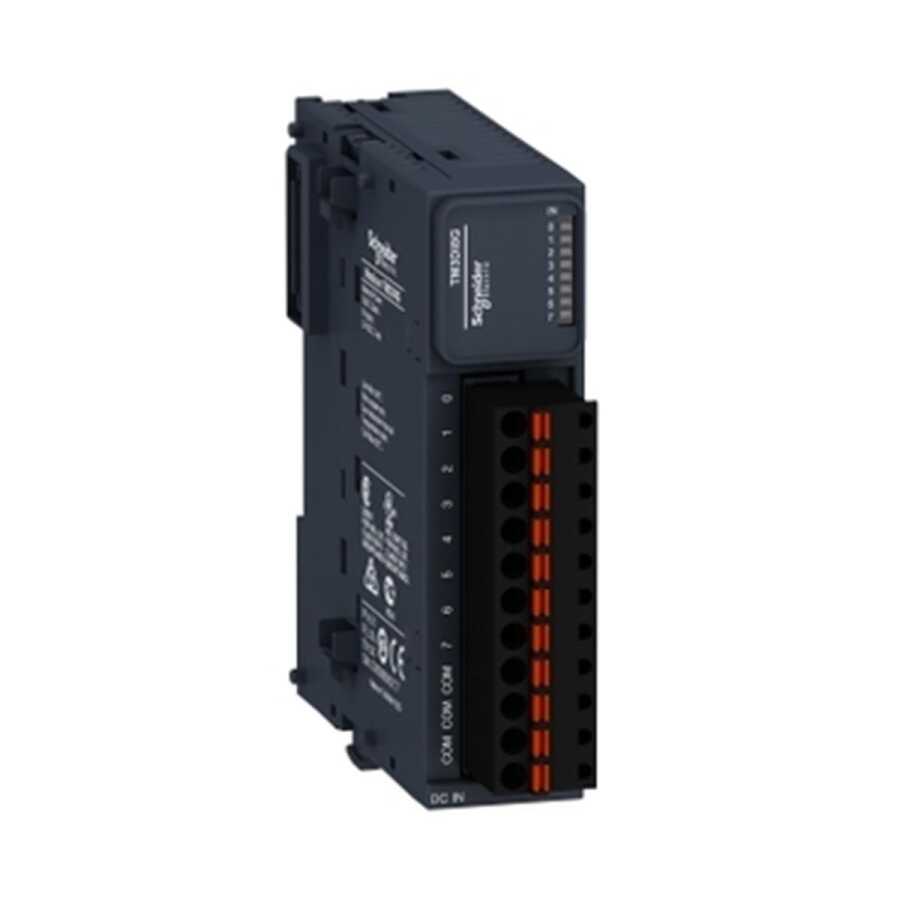

| range of product | Modicon TM3 |
|---|---|
| product or component type | Discrete input module |
| range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| discrete input number | 8 for input conforming to IEC 61131-2 Type 1 |
| discrete input logic | Sink or source (positive/negative) |
| discrete input voltage | 24 V |
| discrete input current | 7 mA for input |
| discrete I/O number | 8 |
|---|---|
| current consumption | 5 mA at 5 V DC via bus connector (at state off) 0 mA at 24 V DC via bus connector (at state on) 0 mA at 24 V DC via bus connector (at state off) 24 mA at 5 V DC via bus connector (at state on) |
| discrete input voltage type | DC |
| voltage state 1 guaranteed | 15...28.8 V for input |
| current state 1 guaranteed | >= 2.5 mA (input) |
| voltage state 0 guaranteed | 0...5 V for input |
| current state 0 guaranteed | <= 1 mA (input) |
| input impedance | 3.4 kOhm |
| response time | 4 ms (turn-on) 4 ms (turn-off) |
| local signalling | 1 LED per channel (green) for input status |
| electrical connection | 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for inputs |
| maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| insulation | Between input and internal logic at 500 V AC Non-insulated between inputs |
| marking | CE |
| mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| height | 90 mm |
| depth | 84.6 mm |
| width | 27.4 mm |
| net weight | 0.085 kg |
| standards | EN/IEC 61010-2-201 EN/IEC 61131-2 |
|---|---|
| product certifications | CULus C-Tick |
| resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 |
| resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| resistance to fast transients | 1 kV for I/O conforming to EN/IEC 61000-4-4 |
| surge withstand | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 |
| ambient air temperature for operation | -10…35 °C vertical installation -10…55 °C horizontal installation |
| ambient air temperature for storage | -25…70 °C |
| relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| pollution degree | 2 |
| operating altitude | 0...2000 m |
| storage altitude | 0…3000 m |
| vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel |
| shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 230.0 g |
| Package 1 Height | 7.5 cm |
| Package 1 width | 10.5 cm |
| Package 1 Length | 12.5 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 27 |
| Package 2 Weight | 5.183 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 40 cm |
| Package 2 Length | 60 cm |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 9 |
| Package 3 Weight | 2.234 kg |
| Package 3 Height | 15 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
